1 、 Chemische Zusammensetzung
Klasse | N | C | H | Fe | O | Al | V | Pa | MO | Ni | Ti |
Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
GR3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
GR4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5,5 ~ 6,75 | 3,5 ~ 4,5 | / | / | / | Bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0,12 ~ 0,25 | / | / | Bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2,5 ~ 3,5 | 2.0 ~ 3.0 | / | / | / | Bal |
GR12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0,2 ~ 0,4 | 0,6 ~ 0,9 | Bal |
2 、 Zugbedarf
| 2.Tensile Anforderungen | |||||
| Klasse | Spannstärke (≥) | YEILD -Stärke (≥)) | Dehnung (≥)%) | ||
| ksi | MPA | ksi | MPA | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| GR3 | 65 | 450 | 55 | 380 | 18 |
| GR4 | 80 | 550 | 70 | 483 | 15 |
| GR5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr9 | 90 | 620 | 70 | 483 | 15 |
| GR12 | 70 | 483 | 20 | 345 | 18 |
| GR23 | 120 | 828 | 110 | 760 | 10 |
| Produktname | Klasse | Spezifikationen (mm) | ||||
| Außendurchmesser | Innendurchmesser | Abschnitt Höhe | Ringmaterialdicke | Standard | ||

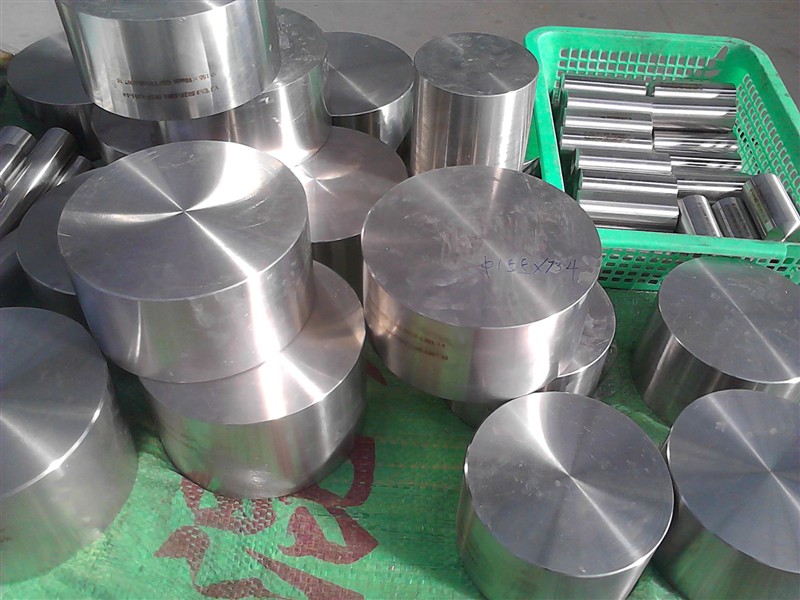

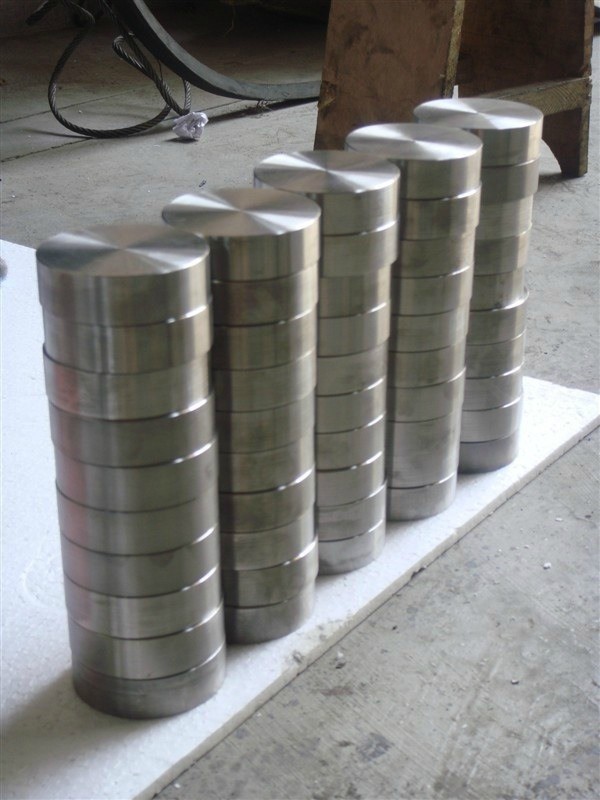

| Titanscheibe | GR1 Gr2 Gr5 Gr7 gr9 Gr12 | 150-300 | / | 35-140 | / | ASTM B381 |
| > 300-500 | / | 35-150 | / | |||
| > 500-600 | / | 40-110 | / | |||
| Titanring | 200-400 | 100-300 | 35-120 | 40-150 | ||
| > 400-700 | 150-500 | 40-160 | 40-250 | |||
| > 700-900 | 300-700 | 50-180 | 40-300 | |||
| > 900-1300 | 400-900 | 70-250 | 40-400 | |||
